CAD Drawings From Point Clouds Explained

If you have ever opened a set of existing drawings and immediately started questioning wall positions, floor levels, or whether that stair core really lines up, you already know the value of dependable survey information. CAD drawings from point clouds give design teams a far more reliable starting point because the geometry is derived from captured site conditions rather than assumption, patchwork edits, or outdated records.

For architects, technologists, and consultants, that matters early. Existing-condition errors do not stay politely contained in the survey stage. They travel into planning drawings, coordination packages, listed building applications, steelwork design, and contractor queries. By the time the issue is visible, the cost is no longer the survey. It is redesign time, delayed decisions, and avoidable risk.

What CAD drawings from point clouds actually are

A point cloud is a dense spatial record of a building or site, typically created through 3D laser scanning. It captures millions of measured points that represent visible surfaces such as walls, floors, ceilings, beams, windows, roof structures, and ornamental detail.

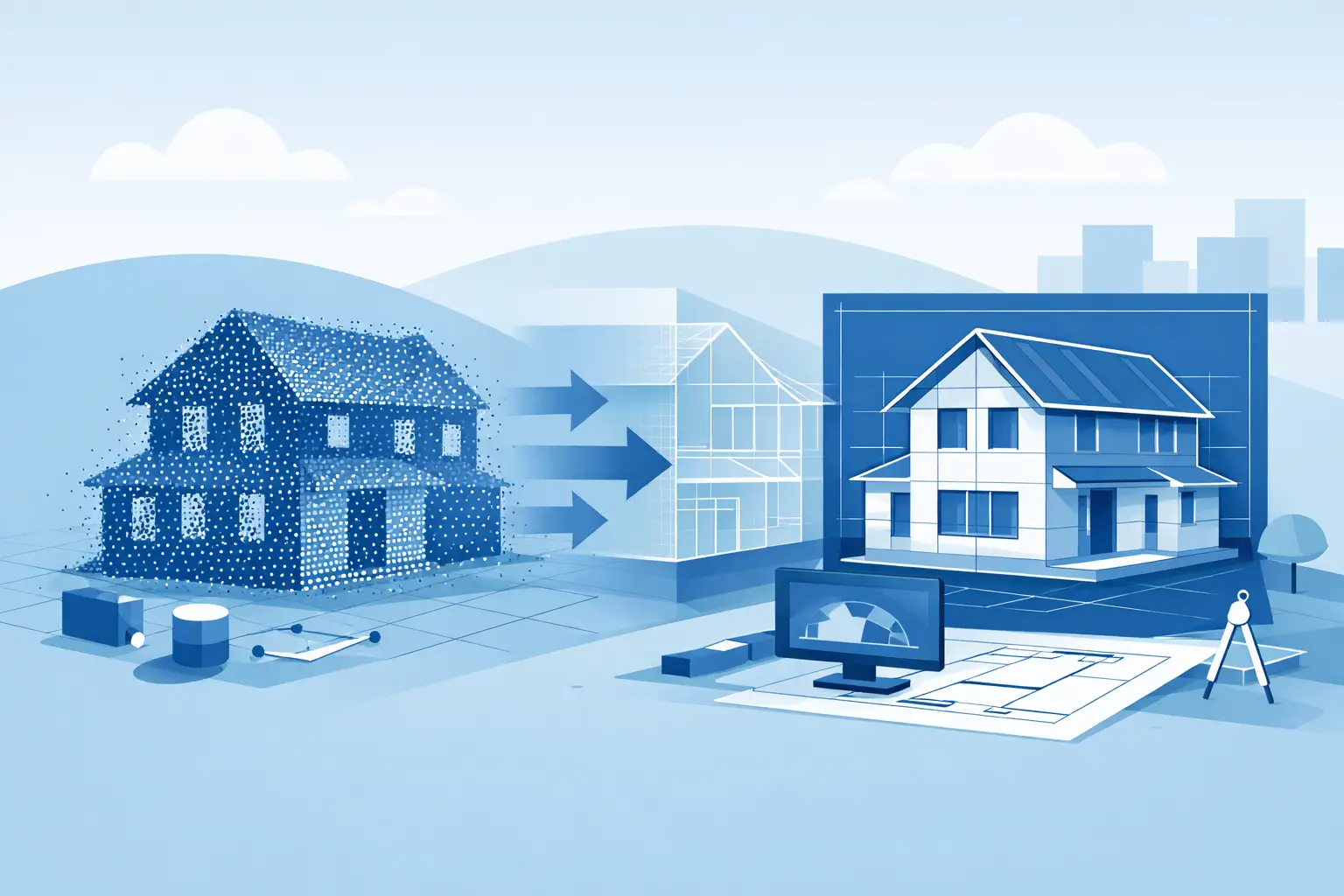

CAD drawings from point clouds are then produced by interpreting that captured geometry into structured 2D outputs. That usually means floor plans, elevations, sections, roof plans, reflected ceiling plans, or detail drawings, depending on the brief. The point cloud is not the final deliverable in itself. It is the measured reference used to create accurate, design-ready CAD information.

This distinction matters. A point cloud contains a huge amount of raw reality, but it still needs experienced documentation work to become useful. Good CAD production involves more than tracing visible lines. It requires judgement about cut planes, how to represent irregular surfaces, which features matter for the design stage, and how to organise the drawing so a project team can use it immediately.

Why point-cloud-based CAD is more dependable

Traditional measured surveys can still be appropriate on simple sites, particularly where the required output is limited and geometry is straightforward. But as soon as a building becomes irregular, constrained, heritage-sensitive, or difficult to access, point-cloud-led documentation starts to offer clear advantages.

The first is coverage. Laser scanning captures a broad and detailed record of the building in a way that isolated tape, disto, or total station measurements do not. That does not mean every hidden element becomes known, because concealed construction remains concealed, but it does mean visible geometry is recorded much more comprehensively.

The second is verification. When questions come up later, the point cloud provides a measurable reference that can be revisited during the documentation stage. If an architect asks whether a window jamb was interpreted correctly, or whether a column is out of square, the answer can be checked against the captured data rather than guessed from sparse notes.

The third is consistency. Sections, elevations, and plans all come from the same measured source. That tends to reduce the small but cumulative mismatches that appear when separate outputs are built from fragmented manual measurement.

Where CAD drawings from point clouds add the most value

Not every project needs the same level of documentation, but certain building types benefit particularly strongly from this workflow.

Heritage and listed properties are an obvious example. These buildings often include movement, settlement, handmade construction, decorative irregularity, and decades of alteration. Clean, rectangular assumptions rarely survive contact with the site. Point-cloud-based CAD helps teams record what is actually there, which is especially useful when planning repairs, interventions, or consent applications where existing fabric must be understood properly.

Complex commercial buildings also benefit. Plant zones, split levels, awkward roof forms, atria, and later-stage refurbishments can create a geometry puzzle that is difficult to document reliably with conventional methods alone. In these cases, dependable measured information supports coordination as much as design.

Residential projects should not be underestimated either. Period houses, converted buildings, and high-end refurbishments often involve enough irregularity to justify a more rigorous approach. A staircase that drifts, a roof that twists, or a façade that bows can materially affect layout decisions.

The process behind accurate CAD output

High-quality CAD documentation from point clouds starts well before anyone opens AutoCAD. The outcome depends on how the project is scoped, captured, processed, and quality checked.

1. Scoping the required outputs

The first step is defining what the design team actually needs. That sounds obvious, but it is where many documentation packages go wrong. A planning-stage floor plan set requires a different level of detail from a fabrication-informed reflected ceiling plan or a section package intended for structural coordination.

This is why a clear brief matters. It determines the drawing types, level of annotation, treatment of architectural features, file organisation, and survey extent. It also helps avoid paying for data that will not be used, or worse, receiving drawings that look complete but are not fit for purpose.

2. Site capture

The building is then scanned from multiple positions to record visible geometry across the survey area. Photography may also support interpretation, particularly where material changes, ornamental details, or architectural features need to be distinguished clearly during documentation.

Capture strategy matters more than many clients realise. Poor scan placement, missing lines of sight, or insufficient coverage around level changes can create avoidable gaps later. On complex or sensitive sites, experienced planning on the day often makes the difference between a clean documentation process and a frustrating one.

3. Registration and data preparation

Once captured, the scans are registered into a unified point cloud. At this stage, the raw data is aligned, cleaned, and prepared for use. Accuracy checks are critical here because small registration issues can compromise confidence in the final drawings.

4. CAD production

Drawings are then produced from the point cloud according to the agreed scope. This is where technical interpretation comes in. A useful floor plan is not just a literal horizontal slice. It needs legible line hierarchy, sensible representation of structure and openings, and consistent treatment of elements that sit above or below the cut plane.

Sections and elevations demand similar care. Irregular buildings often require decisions about where best to cut, how to show variation, and how to handle distortions that are real but may need controlled representation to remain readable.

5. Quality control and issue resolution

Before issue, the drawings should be checked against the captured data and reviewed for consistency across the set. This is also the stage to resolve queries, confirm assumptions, and make sure the outputs match the intended design use.

What good CAD drawings from point clouds should include

For design teams, quality is rarely about the point cloud alone. It is about whether the final files are dependable and easy to work with.

That means drawing sets should be clean, layered sensibly, and scaled correctly. Geometry should be traceable to the captured conditions. Irregularities should be recorded where relevant rather than quietly squared off for convenience. Levels, openings, stair geometry, roof form, and principal architectural features should be represented consistently across related drawings.

It also means the output should suit the programme. Fast turnaround is useful only if the information remains dependable. Equally, extreme detail is not always better if it slows the project and adds information that no one needs at the current stage.

Common misunderstandings to avoid

One common assumption is that point clouds automatically produce perfect drawings. They do not. The scan is the measured reference, but the quality of the CAD still depends on the team interpreting it.

Another is that more data always means more value. In practice, undocumented abundance can become a burden. If the file structure is poor, if the brief is vague, or if the team receives raw information without usable outputs, production time simply shifts downstream.

There is also the question of visible versus concealed conditions. Point clouds capture what can be seen. They do not reveal hidden structure behind finishes or above inaccessible voids unless those areas are opened or separately surveyed. That is not a flaw in the method. It is simply a boundary that should be understood from the outset.

Choosing the right documentation partner

When appointing a survey and documentation provider, the useful question is not just whether they can scan. Many can. The more important question is whether they can turn captured data into dependable CAD outputs that reduce design risk.

For irregular buildings, heritage assets, and architecturally sensitive spaces, interpretation matters as much as capture. A specialist team will ask the right questions about intended use, drawing hierarchy, tolerances, and edge cases. They will also communicate clearly when something is uncertain, inaccessible, or outside the survey scope.

That level of honesty is valuable. It gives the design team a realistic basis for decision-making rather than a false sense of completeness.

Where firms such as Space Captures tend to add the most value is in combining precision-first site capture with disciplined CAD production and a responsive service model. For busy project teams, that combination often matters just as much as the survey technology itself.

If your next project depends on accurate existing conditions, CAD drawings from point clouds are not simply a better way to record a building. They are a practical way to protect downstream design decisions, especially where geometry is difficult and the cost of getting it wrong is high.
